• Vermiculite Coated Welding Blanket

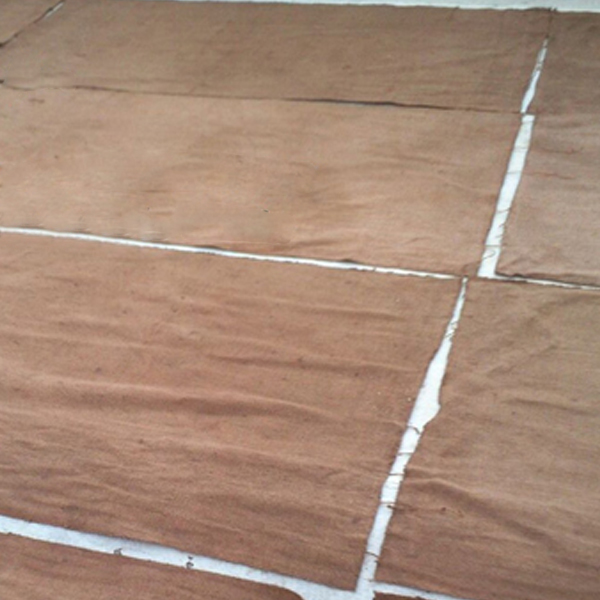

Vermiculite Coated Welding Blanket (Ceramic Vermiculite Cloth)

Vermiculite Coated Welding Blanket is a printed fabric produced of alumina silica fiber of elevated quality and particularly mechanically needled in the shape of ceramic fiber yarn for enhanced tensile strength and surface integrity. It can be used in apps with elevated temperatures up to 2300 o F. Fiberglass filament reinforces the fabric and added Inconel / alloy metal cable. Ceramic fiber textiles have outstanding characteristics of lightweight, poor heat conductivity and the resistance of most corrosive substances to chemical stability.

This Ceramic Vermiculite Cloth is commonly used in welding, forge, aluminum and metal factories, seal and furnace isolation, shipyards, refineries, power plants and chemical plants.

Vermiculite Coated Ceramic Fabric has 10 to 12 percent elevated vermiculite material and offers essential assistance in the method of gathering liquid metal slag. These can be used as an option to textiles centered on asbestos, offering poor thermal conductivity and higher dielectric strength.

These are also used continuously at 2300 ° F/1260 ° C with superior corrosion resistance, molts above 3000 ° F/1650 for Vermiculite Coated Welding Blanket Manufacturer. It is available as part number WCF230V with 2.0mmX1mX30 m roll size ; 31 kg weight (kg / roll) and SS304 cable reinforcement.

  • Ceramic Vermiculite Cloth Manufacturer value of this fabric is very big (10 to 12 percent).
  • Allows liquid metal slag to be collected.
  • An option to textile relying on asbestos.
  • Provides poor thermal conductivity and good dielectric strength and great resistance to corrosion.
  • Continuously used at 2300 ° F/1260 ° C, molds above 30

Features:

  • This fabric has very high vermiculite content (10 to 12%).
  • Allows for collecting molten metal slag.
  • An alternative to asbestos based textiles.
  • Provides low thermal conductivity and good dielectric strength and features excellent corrosion resistance.
  • Used at 2300°F / 1260°C continuously, molts above 30

Specifications:

  • Industry leading Prices.
  • Premium Quality Products.
  • Products Delivery on Time.

Vermiculite Ceramic Fire Blanket Tech Data:

  • Brand    : “ Signature ” Powered By Darshan Safety Zone
  • Available Size     : Thickness: 1.5mm To 5.0mm Width :1000mm
  • Place Of Origin : Ahmedabad, India
  • Application         : Use In Welding Blankets, Stress Relieving, Removable Insulation Covers, Fire Blanket, Fire Curtains……
  • Thickness            : 1.5mm,2.0mm,3.0mm
  • Width    : 1000mm Or [Any] Example – 10Met. X 10Met. X 2MM
  • Length  : Roll of 28 to 30 Meters.
  • Chemical Composition   : Al203>48%
  • Working Temperature   : 1260 °C
  • Loss on Ignition L.O.I      : At 850 °C For 50 Minutes
  • Moisture             : At 105 °C For 50 Minutes
  • Melting Point 1720 °C of the Original Fiber Used.
  • Fiber Diameter  : 2-5um
  • Loss on Ignition : <18%
  • Moisture             : <1 %
  • Warp Density     : 48-60 Piece/10cm
  • Weft Density     : 21-30 Piece/10cm
  • Organic Content (%)       : <15
  • Sample Availability          : Yes
  • Delivery Lead Time          : 1 To 2 Days
  • Delivery Terms  : FOB CIF EXW
